TECHNICAL DATA
Power supply | 11..40 Vdc; 19..28 Vac, 50–60 Hz |
Power consumption | 3,5 W (typical), 6,5 W (max) |

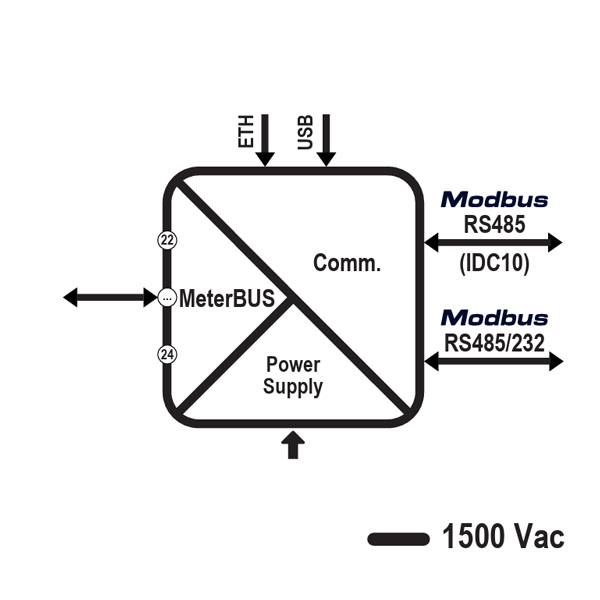

Isolation | 1.500 Vac, 3-ways (M-BUS/RS232-RS485/power supply) |
Status LED indicators | Power supply Ethernet Link & trafic Tx / Rx data on serial port Power supply / M-BUS Communication Tx / Rx data on M-BUS port |
Web Server authentication | Yes |
Protection degree | IP20 |
Operating temperature | -25..+65°C |
Connections | Removable 3-way screw terminals, 5 mm pitch Rear connector IDC10 for DIN rail 46277 RJ45 front connector |
Dimension (WxHxD) | 35x100x112 mm |
Weight | 210 g |
Housing | Glass-filled PA6 black plastic |
Installation | For 35 mm rail IEC EN 60715 |
Standards | CE |
Norms | EN61000-6-4, EN 61000-6-2, EN 61010-1, EN 60950 |
ETHERNET COMMUNICATION | |
Ports | 1 |
Type | Fast Ethernet 10/100 baseTx, RJ45 front with autoswitch |
Configuration | Via integrated Web Server |
Protocol | Modbus TCP-IP server (max. 8 simultaneous clients) |
SERIAL COMMUNICATION | |
Ports | 2 |
Type | COM#1 RS485 for IDC10 connector COM#2 RS485/RS232 clamp-switchable port |
Baud rate | From 1.200 up to 115.200 bps |
Protocol | ModBUS RTU Slave |
M-BUS COMMUNICATION | |
Port | 1 |
N° max nodi slave M-BUS | 25 |
Baud rate | From 300 up to 38.400 bps |
Distanza max | 3.000 m |
CONNECTIVITY | |
N° Max Client TCP-IP (Server Mode) | 8 |
N° Max Client variables / Tag | 500 |
N° Max ModBUS registers | 1000 |
N° Max Modbus RTU/ASCII slave nodes | - |
SETTINGS & SOFTWARE | |
DIP switch | Sì |
Web server | Yes, Reading statuses (max. 50 tags per page), settings, M-BUS devices, M-BUS network scan, Setup Tag, firmware update and database |
