TECHNICAL DATA

Description: DC current isolator
Input: Current 0..20, 4..20 mA, 20Vdc stabilized loop supply, input impedance 20 Ω
Output: Current 0..20, 4..20 mA
Response Time: <200 μs, cutoff frequency (-3dB) 6kHz
Precision: 0,2%
Power supply: 90..264 Vac; 50 ÷ 60 Hz;
Sensors supply: 2 wires, 20 Vdc stabilized, 20 mA max protected against short circuit

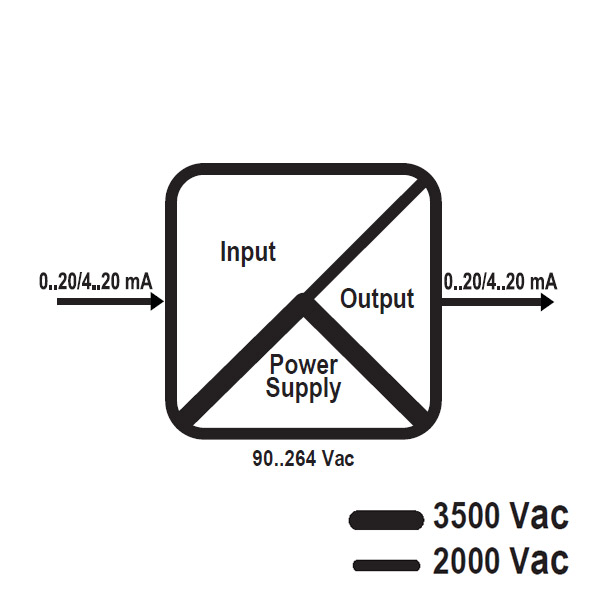

Insulation: up to 3.500 Vac

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE Z109S-H
GROSS WEIGHT kg 0.16
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuals, flyers


IT EN FR DE ES
Z-Line Converters and Isolators
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

DRAWINGS & CAD MODELS


2D model
dwg icon Multi
3D Model
stp icon Multi

Certifications


CE Conformity Declaration
pdf icon Multi
Dichiarazione UL
Dichiarazione UL
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

Product versions

Z109S-H

DC current isolator with 90..264 Vac power supply

Availability to confirm, please contact us ?
