TECHNICAL DATA

Order code : k109ui

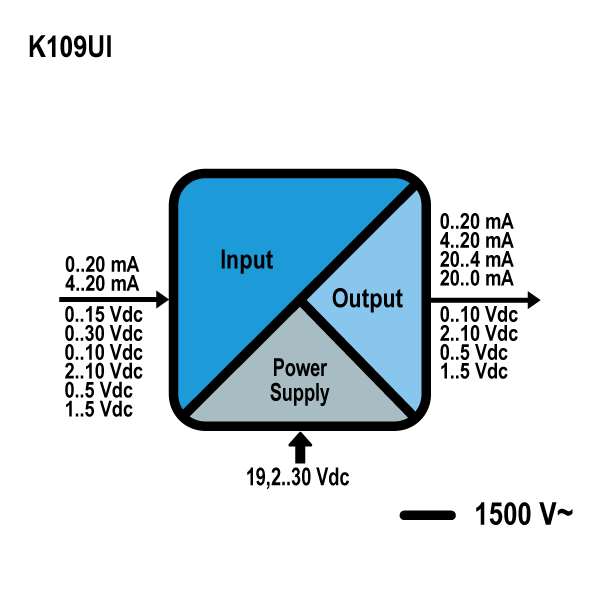

Description: Galvanic isolator analog converter
Input: current 0/4..20 mA; voltage 0..15, 0..30, 0..10, 2..10, 0..5, 1..5 Vdc
Output: current 0/4..20, 20..4/0 mA; voltage 0..10, 2..10, 0..5, 1..5 Vdc
Power Supply: 19,2..30 Vdc
Max consumption: 22 mA
Insulation: 1,5 kVac, 3 way
Resolution: 14 bit
Precision class: 0,1%
Power supply technique: Direct on spring cage terminale or distributed with K-BUS connector
Dimensions: 6,2 x 93,1 x 102,5 mm
Special function: scale inversion, square root extraction, cylinder tanks linearization

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109UI
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuels, prospectus


IT EN FR DE ES
Fiche Technique
pdf icon it pdf icon en - - -
Convertisseurs Compact K line
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

DESIGNS & CAD MODÈLES


▼
2D model
dwg icon Multi
Modèle 3D
dwg icon Multi
Symboles électriques Modèle 3D
dwg icon Multi
3D Model
stp icon Multi

Certifications


▼
Déclaration de Conformité
pdf icon Multi
Certificat UL
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

Versions du produit

Prix
K109UI

DC current/voltage to DC current/voltage isolator/converter

En stock ?
€ 135,00

Accessoires

Prix
K-SUPPLY

Redundant power supply module for K-Line modules

En stock ?
€ 58,00
K-BUS

Expandable power supply connector

Disponibilité à confirmer, nous contacter ?
€ 11,00
K-BUS-G

Expandable power supply connector

En stock ?
€ 11,00
K-BUS-V

Expandable power supply connector

Disponibilité à confirmer, nous contacter ?
€ 11,00
