TECHNICAL DATA

Order code : K109LV

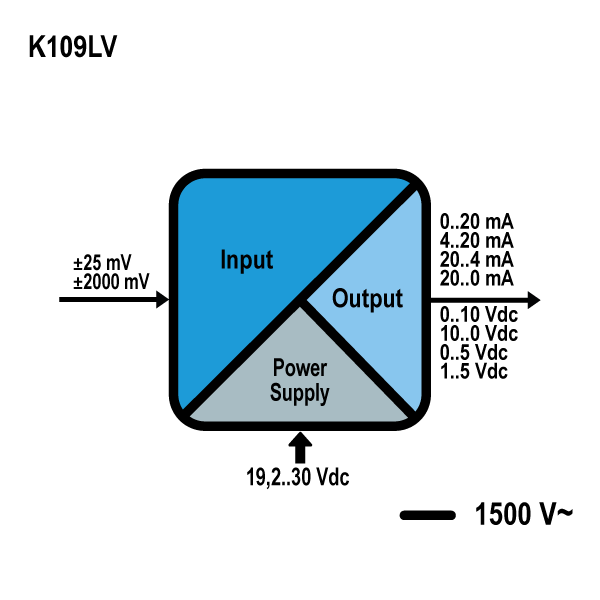

Description: Current shunt / V-I converter
Input: pre-setted scales form ±25 mV to ±2000 mV
Output: current 0/4..20, 20..4/0 mA or voltage 0..5/10, 10..0, 1..5 Vdc
Power Supply: 19,2..30 Vdc
Max consumption: 22 mA
Insulation: 1,5 kVac, 3 way
Resolution: 14 bit
Precision class: 0,1%
Power supply technique: direct on spring cage terminale or distributed with K-BUS connector
Dimensions: 6,2 x 93,1 x 102,5 mm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109LV
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99
