TECHNICAL DATA

Power supply by output current loop 4..20 mA
Max consumption < 0,6 W
Degree protection IP20
Status indicator Over alarm range
Response time 500 ms
Accuracy 0.5% of f.s. (@40..120 Hz)
Thermal coefficient <200 ppm/°C
Settings Full scale and filter
Operating temperature -25..70°C
Storage temperature -40..85°C
Humidity 10 - 90 % (non-condensing)
Altitude Up to 2000 m above s.l.
Dimensions LxHxD 18x110x62 mm
Connections Removable terminal 5mm pitch (conductor section 2.5 mm2)
Enclosure PC-ABS self-extinguishing, grey color
Mounting DIN rail 35 mm (IEC/EN 60715)
Standards CE
Norms EN61326 (EMC), EN61010-1 (SAFETY)

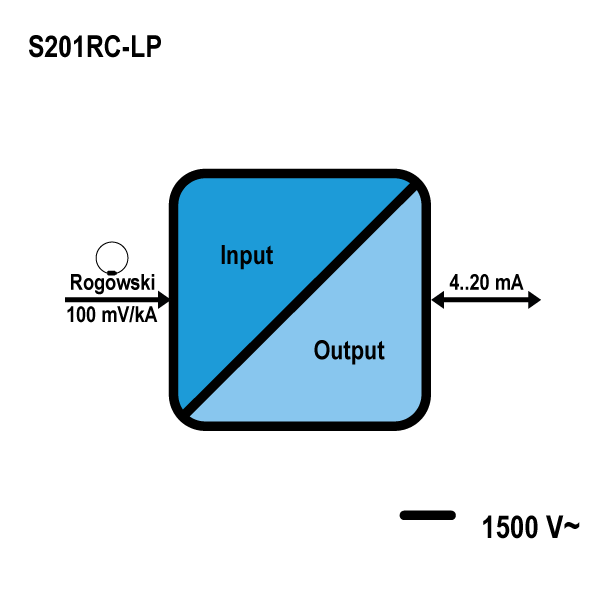

Input channel / type Nr. 1
ROGOWSKI sensors with
output signal 100mV/kA
Measurement type: TRMS Scale: 250, 500, 1.000, 2.000, 4.000 @ 50-60 Hz
Bandwidth: 3 kHz
Over-current: 10kA (1 Vrms)
Protection: surge protection and reverse polarity
Filter: FAST = 0.5 s, SLOW = 1 s
Output channel / type Nr. 1
CURRENT
4..20 mA
Max output: 22 mA
Power supply: by current loop 4..20 mA (9..28 Vdc)
Max load: 600 Ohm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE S201RC-LP
GROSS WEIGHT kg 0.06
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN 3B992

Manuels, prospectus


IT EN FR DE ES
Fiche Technique
pdf icon it pdf icon en - - -
Manuel d'installation
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

Certifications


▼
Declaration of conformity CE
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi

Produits Liés

RC150

Capteur de Rogowski, sortie 100 mV/kA @ 50 Hz, Ø capteur 80..580 mm
0
0
0

Versions du produit

Prix
S201RC-LP

Rogowski sensors converter loop-powered

En stock ?
€ 80,00

Accessoire obligatoire

Prix
RC150-025-100-3M

Rogowski Coil L=25 cm, Ø int. 8 cm, 100mV/1KA-50Hz and cable L=3mt

En stock ?
€ 100,00
RC150-025-100-5M

Rogowski Coil L=25 cm, Ø int. 8 cm, 100mV/1KA-50Hz and cable L=5mt

En stock ?
€ 110,00
RC150-035-100-3M

Rogowski Coil L=35 cm, Ø int. 11 cm, 100mV/1KA-50Hz and cable L=3mt

Disponible en quantité limitée ?
€ 104,00
RC150-040-100-3M

Rogowski Coil L=40 cm, Ø int. 12 cm, 100mV/1KA-50Hz and cable L=3mt

En stock ?
€ 104,00
RC150-040-100-5M

Rogowski Coil L=40 cm, Ø int. 12 cm, 100mV/1KA-50Hz and cable L=5mt

Disponible en quantité limitée ?
€ 113,00
RC150-060-100-3M

Rogowski Coil L=60 cm, Ø int. 19 cm, 100mV/1KA-50Hz and cable L=3mt

En stock ?
€ 110,00
RC150-060-100-5M

Rogowski Coil L=60 cm, Ø int. 19 cm, 100mV/1KA-50Hz and cable L=5mt

En stock ?
€ 123,00
RC150-090-100-3M

Rogowski Coil L=90 cm, Ø int. 28 cm, 100mV/1KA-50Hz and cable L=3mt

Disponible en quantité limitée ?
€ 155,00
RC150-090-100-5M

Rogowski Coil L=90 cm, Ø int. 28 cm, 100mV/1KA-50Hz and cable L=5mt

Disponibilité à confirmer, nous contacter ?
€ 168,00
RC150-120-100-3M

Rogowski Coil L=120 cm, Ø int. 38 cm, 100mV/1KA-50Hz and cable L=3mt

Disponibilité à confirmer, nous contacter ?
€ 250,00
RC150-180-100-3M

Rogowski Coil L=180 cm, Ø int. 57 cm, 100mV/1KA-50Hz and cable L=3mt

Disponibilité à confirmer, nous contacter ?
€ 402,00
RC150-120-100-5M

Rogowski Coil L=120 cm, Ø int. 38 cm, 100mV/1KA-50Hz and cable L=5mt

Disponibilité à confirmer, nous contacter ?
€ 245,00
