TECHNICAL DATA

Order code : A-GSM-QUAD-N

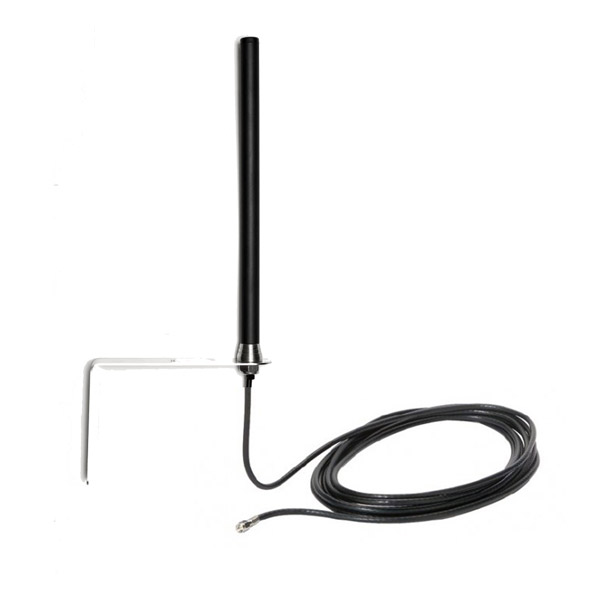

Description: GSM/3G/4G/LTE high-performance omnidirectional antenna
Frequency Range: AMPS (850 MHz)
GSM (900 MHz)
DCS (1800 MHz)
PCS (1900 MHz)
3G (UMTS 2.1 GHz)
WIFI / BLUETOOTH (2.4 GHz)
4G/LTE (791-960/1710-2690 MHz)
Impedance: 50 Ohms
Gain: 2.2 dBi Max
Max Power: 100 W
Polarization: Linear vertical
Operating Temperature: -40..+85°C
Connector: SMA
Antenna Dimension LxØ: 274 x 20 mm (only antenna)
Antenna Lenght: 5 m

Certifications


▼
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
