TECHNICAL DATA

Order code : A-GSM-DIR-5M

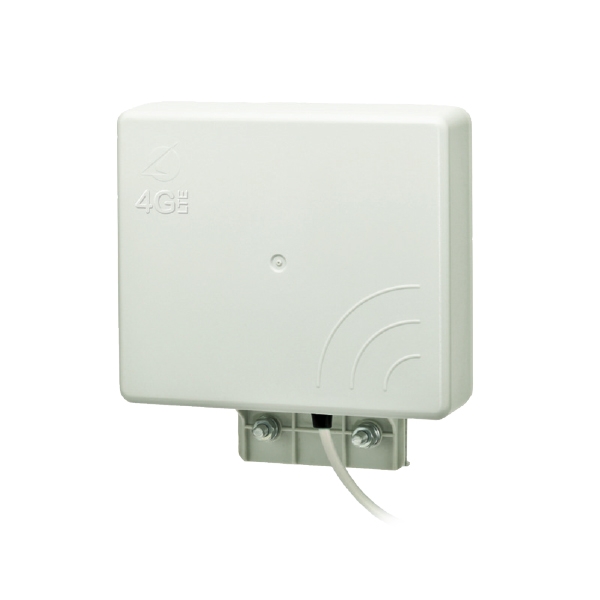

Description: GSM-DECT-UMTS directive compact antenna
GSM cable: CO100 L = 5 m
GSM connector: SMA M
Operating frequency: GSM 890<>960 / 1710<>1880 Mhz; DECT=1880-1900 Mhz; UMTS=1885-2200 Mhz
Max power: 8 W
Gain: 9 dB
VSWR: GSM TX<2

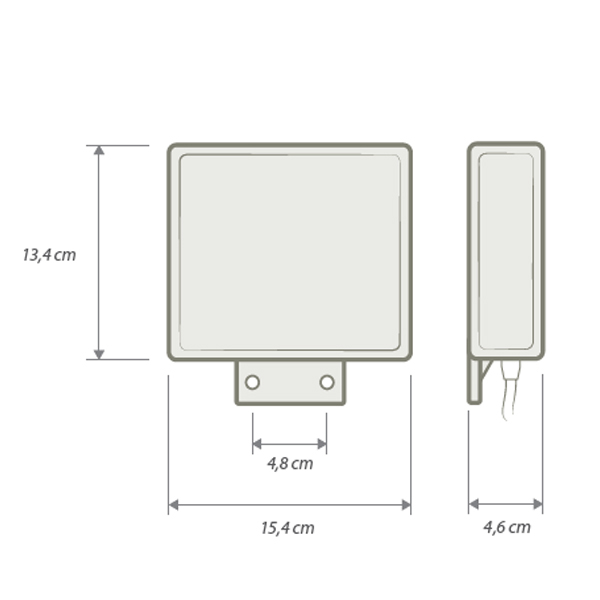

Dimension (LxBxH): 7,5x15,5x17 cm
Wall mounting: 2x Ø 6,5mm⇔48mm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE A-GSM-DIR-5M
GROSS WEIGHT kg 1
ORIGIN IT
CN (Combined Nomenclature) 85291039
ECCN 5A001

Certifications


▼
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
