TECHNICAL DATA

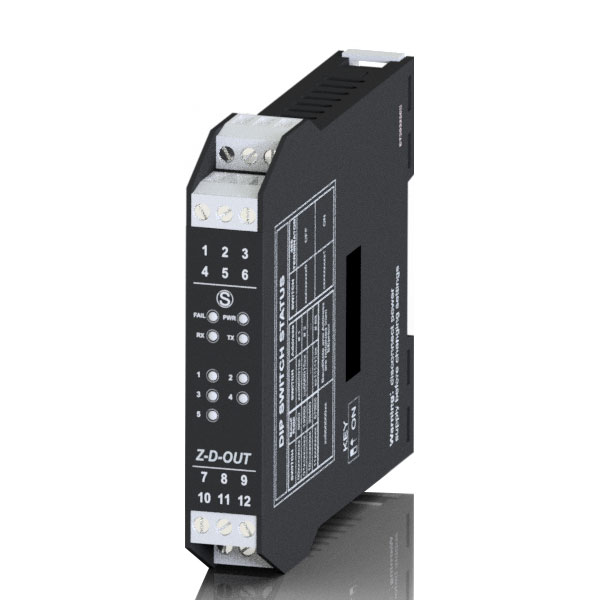

| Order code : | Z-D-OUT |
| Description: | 5-CH Digital output module / RS485 |
| Power Supply: | 10..40 Vdc; 19..28 Vac (50-60 Hz) |
| Outputs: | 5-CH SPST relay, settings NO/NC |
| Safe state: | Settable at start up or in case of communication fault, programmable delay fron 50 to 250 ms |
| Communication: | RS485 2 wire, ModBUS RTU slave protocol |
| Dimensions: | 17,5 x 100 x 112 [mm] |
| Mounting: | 35 mm symmetrical DIN (46277) rail |
