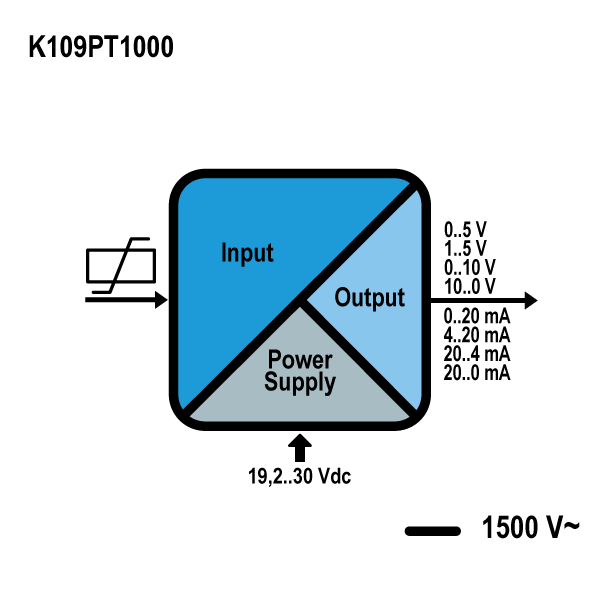

TECHNICAL DATA

Order code : K109PT1000
Description: Pt1000 converter
Input: Pt1000 (EN 60751/A2 – ITS90), -200..+210 °C, min span 30° C
Output: Current 0/4..20, 20..4/0 mA; voltage 0..5/10, 10..0, 1..5 Vdc
Power Supply: 19,2..30 Vdc
Max consumption: 21 mA
Insulation: 3 way, 1,5 kVac
Resolution: 14 bit
Accuracy class: 0,1%
Power supply technique: Direct on spring cage terminale or distributed with K-BUS connector
Dimension WxHxD: 6,2x93,1x102,5 mm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109PT1000
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuals, flyers


IT EN FR DE ES
Datasheet
pdf icon it pdf icon en - - -
K Line Compact Converters
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

DRAWINGS & CAD MODELS


▼
2D model
dwg icon Multi
3D Model
dwg icon Multi
£d Model (electrical symbols)
dwg icon Multi
3D Model
stp icon Multi

Certifications


▼
CE Conformity Declaration
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

SENECA offices will be closed for Christmas holidays from 24 December to 6 January. Business activities will resume as normal on Monday, 7 January. Orders received from 20 December will be dispatched from Monday, 7 January. We thank you for your cooperation and wish you happy holidays!

Product versions

Price
K109PT1000

Pt1000 to DC current/voltage isolator/converter

In stock ?
€ 145.00
