TECHNICAL DATA

Order code : K109PT-HPC

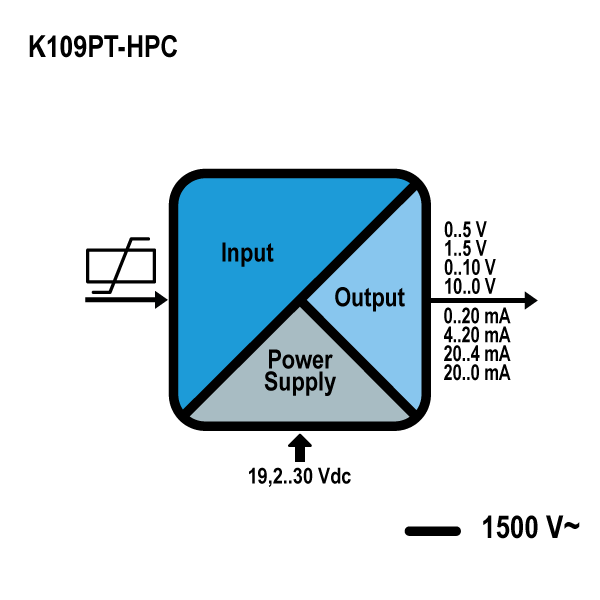

Description: Pt100 high-precision converter
Input: Pt100 2, 3, 4 wire (EN 60751 – ITS90), 200..+160°C, min span 20°C
Output: current 0/4..20, 20..4/0 mA; voltage 0..5/10, 10..0, 1..5 Vdc
Max consumption: 21 mA
Insulation: 3 way, 1,5 kVac
Resolution: 14 bit
Precision class: 0,1%
Power supply technique: direct on spring cage terminale or distributed with K-BUS connector
Dimensions WxHxD: 6,2x93,1x102,5 mm

SHIPPING AND EXPORT INFORMATION

PRODUCT CODE K109PT-HPC
GROSS WEIGHT kg 0.075
ORIGIN IT
CN (Combined Nomenclature) 85437090
ECCN EAR99

Manuals, flyers


IT EN FR DE ES
Datasheet
pdf icon it pdf icon en - - -
K Line Compact Converters
pdf icon it pdf icon en - - -
Installation Manual
pdf icon it pdf icon en pdf icon fr pdf icon de pdf icon es

DRAWINGS & CAD MODELS


▼
2D model
dwg icon Multi
3D Model
dwg icon Multi
3D Model (electrical symbols)
dwg icon Multi
3D Model
stp icon Multi

Certifications


▼
CE Conformity Declaration
pdf icon Multi
REACH and ROHS declarations
pdf icon Multi
Customs codes
pdf icon Multi
0
0
0

SENECA offices will be closed for Christmas holidays from 24 December to 6 January. Business activities will resume as normal on Monday, 7 January. Orders received from 20 December will be dispatched from Monday, 7 January. We thank you for your cooperation and wish you happy holidays!

Product versions

Price
K109PT-HPC

Pt100 (high precision) to DC current/voltage isolator/converter

In stock ?
€ 145.00

Accessories

Price
K-SUPPLY

Redundant power supply module for K-Line modules

In stock ?
€ 58.00
K-BUS

Expandable power supply connector

Availability to confirm, please contact us ?
€ 11.00
K-BUS-G

Expandable power supply connector (grey)

In stock ?
€ 11.00
K-BUS-V

Expandable power supply connector (green)

Availability to confirm, please contact us ?
€ 11.00
